SIDE MOUNT KITS INCLUDE:

Complete hoist matched for capacity
2  dual pipe supports

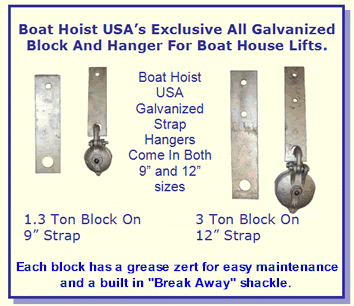

2  3" or 4" ball bearing blocks
2  12" strap hangers
80' galvanized 7x19 aircraft cable
8   galvanized clamps
4   galvanized thimbles
1 set of 4" x 14'  weighted slings or cradle
All mounting hardware
CENTER MOUNT KITS INCLUDE:

Complete hoist matched for capacity
1  single pipe support
4  3" or 4" ball bearing blocks
4  12" strap hangers
80' galvanized 7x19 aircraft cable
8   galvanized clamps
4   galvanized thimbles
1  set of 4" x 14'  weighted slings or cradle
All mounting hardware

SIDE MOUNT OR CENTER MOUNT?
Side mount kits are designed to use the pipe as load bearing and move it over to one side of the structure. This will work for most lighter boats, however it does require special supports so the weight of the boat does not put too much stress on the unit.

Center mount kits are the best way to install a boat hoist. The center mount design makes the unit load free therefore it can easily lift larger boats by keeping the weight of the boat on the 4 pulleys

WHAT SIZE KIT DO I NEED?
When deciding the correct kit for your boat it is always a good idea to buy more lifting capacity than you need. In many cases the boat's weight is only the DRY weight and in some cases it does not include the engine.  If your boat weighs 4400 lbs, it would be wise to choose a 6000 lb lift.  If you have a cradle, you need to add at least 400 lbs. more to the lift.
"Click on the pictures below for a larger view"

Choose your lift capacity here Wood Mount Boathouse Lifts "GO HERE FOR STEEL MOUNT"

"Go Here for installation instructions" and  "Go Here for Up-grades and Options"

WSPC 3000 Sling Lift $689.00
3000 lb Basic Single Line Sling Lift Kit for mounting pipe in center of Boat House
Basic Lift Kit includes:
WSPS 3000 Sling Lift $709.00 (Pipe on Side)
3000 lb Basic Single Line Sling Lift Kit (Pipe on Side) Great for boats with tops.
Basic Lift Kit includes:

WCPC 3000 Cradle Lift $875.00
3000 lb Basic Single Line V-hull Cradle Lift Kit  for Mounting pipe in center of Boat House
Basic Lift Kit includes:

WCPS 3000 Cradle Lift $897  (Pipe on Side)
3000 lb Basic Single Line Cradle Lift Kit (Pipe on Side) Great for boats with tops and light ski boats with Wakeboard Towers.
Basic Lift Kit includes:


Call Toll Free: 866-564-9777
or 318-987-0275

WSPC 3500 Deluxe Sling Lift $744.00
3500 lb Deluxe Single Line Sling Lift Kit For Mounting pipe in center of Boat House
Kit includes:

WSPS 3500 Deluxe Sling Lift $759.00 (Pipe on Side)
3500 lb Deluxe Single Line Sling Lift Kit (Pipe on Side) Great for boats with tops.
Deluxe Lift Kit includes:

WCPC 3500 Deluxe Cradle Lift $1075.00
3500 lb Deluxe Single Line V-hull Cradle Lift Kit for Mounting pipe in center of Boat House

Kit includes:

WSPS 3500 Deluxe Cradle Lift $1024.00 (Pipe on Side)
3500 lb Deluxe Single Line Cradle Lift Kit (Pipe on Side) Great for boats with tops and light ski boats with Wakeboard Towers.
Deluxe Lift Kit includes:

WSPC 4500 Deluxe Sling Lift $769.00
4500 lb Deluxe Single Line Sling Lift Kit for Mounting pipe in center of Boat House
Kit includes:

WSPS 4500 Deluxe Sling Lift $895 (Pipe on Side)
4500 lb Deluxe Single Line Sling Lift Kit (Pipe on Side) Great for boats with tops.
Deluxe Lift Kit includes:


Call Toll Free: 866-564-9777
or 318-987-0275

WCPC 4500 Deluxe Cradle Lift $1,098.00
4500 lb Deluxe Single Line V-hull Cradle Lift Kit for Mounting pipe in center of Boat House

Kit includes:
WSPS 4500 Deluxe Cradle Lift $1,048.00 (Pipe on Side)
4500 lb Deluxe Single Line Cradle Lift Kit (Pipe on Side) Great for boats with tops and ski boats with Wakeboard Towers.
Deluxe Lift Kit includes:

WSPS 4500 Inboard Ski Boat Cradle Lift $1,195.00 (Pipe on Side)  **NEW ITEM**
4500 lb Deluxe Single Line Cradle Lift Kit (Pipe on Side) Great for Inboard Ski Boats with Wakeboard Towers.
Deluxe Lift Kit includes:


Call Toll Free: 866-564-9777
or 318-987-0275

WSPC 6000 Deluxe Sling Lift $ 935.00
6000 lb Deluxe Single Line Sling Lift Kit for Mounting pipe in center of Boat House
Kit includes:

WCPC 6000 Deluxe Cradle Lift $1267.00
6000 lb Deluxe Single Line V-hull Cradle Lift Kit for Mounting pipe in center of Boat House

Kit includes:

WSPC 7000 Deluxe Sling Lift $1078.00
7000 lb Deluxe Single Line Sling Lift Kit for Mounting pipe in center of Boat House
Kit includes:


Call Toll Free: 866-564-9777
or 318-987-0275


WCPC 7000 Deluxe Cradle Lift $1382.00
7000 lb Deluxe Single Line V-hull Cradle Lift Kit for Mounting pipe in center of Boat House
Kit includes:
WSPC 8500 Deluxe Sling Lift $1108.00
8500 lb Deluxe Single Line Sling Lift Kit for Mounting pipe in center of Boat House
Kit includes:

WCPC 8500 Deluxe Cradle Lift $1412.00
8500 lb Deluxe Single Line V-Hull Cradle Lift Kit for Mounting pipe in center of Boat House
Kit includes:


Up-Grades and Options for Boat Hoist USA Boathouse Lifts
Stainless Steel Cable, Clamps and Thimbles $65
Stainless Steel Back Plate $85
Galvanized Back Plate $19
Aluminum Back Plate (3500-4500 lb kits only) $28
Wired for 220volt with 220volt GFCI up-grade $28
GEM GR2 Remote $325
Spring Switch $17
Front Hoist Cover with Hardware $42
Front and Back Snap Hoist Cover $60

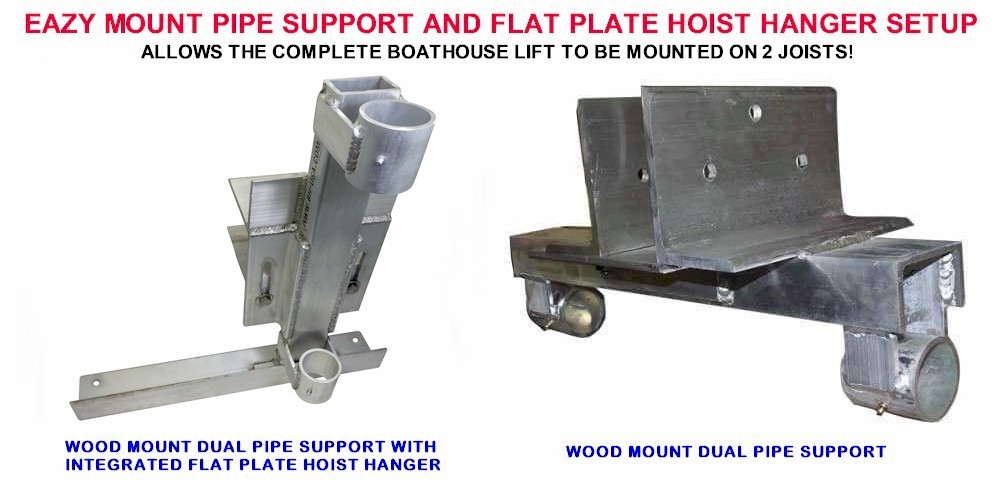

Galvanized single HD Pipe Support $28
Galvanized Dual Pipe Support $48
Aluminum Cable Winders for 2 inch pipe. $45 each

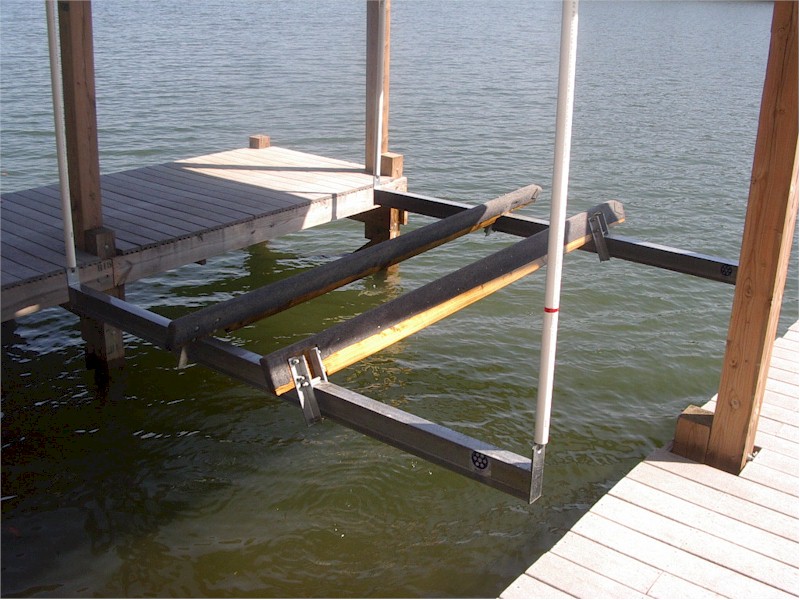

Pontoon Boat Cradle (for cradle lift kits only) $120
Guide Post for Cradle $30 each
6 lb Cable Weights $13 each
10 lb Cable Weights $19 each
Grease Drip Pan $36
Compounding Kit (not weighted) $180
Compounding Kit (weighted for sling kits) $305



Call Toll Free: 866-564-9777
or 318-987-0275
 Open  9AM to 5:30PM CST Monday thru Friday.
Call for Guaranteed low prices
